Key Features:

Chipset: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, enabling robust performance and connectivity.
Form Factor: Compact design, suitable for smaller builds.
Memory Support: Supports up to 128GB DDR4 RAM

Full Specifications

• CPU Compatibility:

Both motherboards support Intel's LGA 1700 socket, compatible with 12th, 13th, and 14th Gen Intel Core processors, which include configurations for PCIe 5.0 and DDR4 memory.

• Memory Support:

Z790-P D4-CSM: Supports up to 128GB of DDR4 RAM, with speeds up to 5333MHz via overclocking, facilitated by ASUS OptiMem II technology for enhanced memory signal integrity and reduced latency.
Z790M-PLUS D4-CSM: Also supports DDR4 RAM, though detailed capacity and speeds may vary slightly depending on configuration.

• Storage and Expansion:

The Z790-P D4-CSM offers three PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, while also providing USB 3.2 Gen 2x2 Type-C ports for fast data transfer. The primary slot supports PCIe 5.0, suitable for GPUs, ensuring high bandwidth.

Z790M-PLUS D4-CSM features similar storage options with three M.2 slots (one being PCIe 5.0) and several SATA ports, optimized for data-intensive applications.

• Cooling and Power Design:

Both motherboards include robust VRM heatsinks and Fan Xpert 4 with AI Cooling II to manage fan speed based on workload, keeping systems cool under heavy load.

Z790-P D4-CSM has a 14+1 power stage design with DrMOS components for stability and efficiency during overclocking, while both boards integrate ASUS’s ProCool connectors for secure power delivery.

• Network and Connectivity:

The Z790-P D4-CSM includes Realtek 2.5Gb Ethernet, and both motherboards support USB4 via Thunderbolt headers, HDMI, and DisplayPort for multiple display outputs at up to 4K resolution.

• Software and BIOS:

Both motherboards come with ASUS-exclusive software, including Armoury Crate and AI Suite 3, providing user-friendly controls for fan speeds, RGB lighting, and other system parameters.

Description:

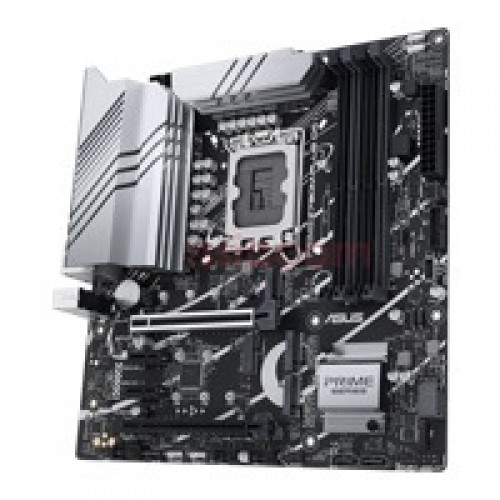

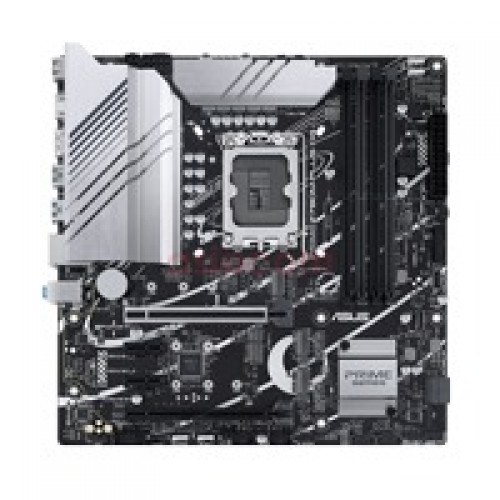

The ASUS PRIME Z790M-PLUS D4-CSM motherboard is a reliable, feature-rich option designed to support Intel's latest 12th and 13th Gen processors. This micro-ATX motherboard offers robust performance and flexibility, with support for DDR4 memory and high-speed PCIe 4.0 lanes, ideal for both productivity and gaming. Key features include comprehensive cooling options, USB 3.2 Gen 2 ports, and ASUS-exclusive software for optimized performance and system customization. Its compact form factor and advanced connectivity make it a versatile choice for professional and enthusiast builds alike.
