Key Features:

• AMD AM5 Socket: Supports AMD Ryzen 7000 series processors for powerful performance.
• PCIe 5.0 Support: Provides faster data transfer speeds for GPUs and storage devices.
• Wi-Fi 6E: Next-gen wireless connectivity for faster and more stable internet.
• DDR5 Memory Support: Supports up to 6400MHz for improved performance and efficiency.
• Dual M.2 Slots: For high-speed storage with up to 2280 form factor support.
• Thunderbolt 4: Offers fast data transfer and connection to external devices.
• Robust Power Design: 16+2 power stages for stable performance under heavy workloads.
• Advanced Cooling: Enhanced heatsinks and fan connectors to ensure optimal thermal management.
• AI Overclocking: Intelligent performance tuning for automatic optimization.
• Comprehensive I/O Options: Includes USB 4.0, HDMI, Ethernet, and more for versatile connectivity.

Full Specifications:

• General Specifications:

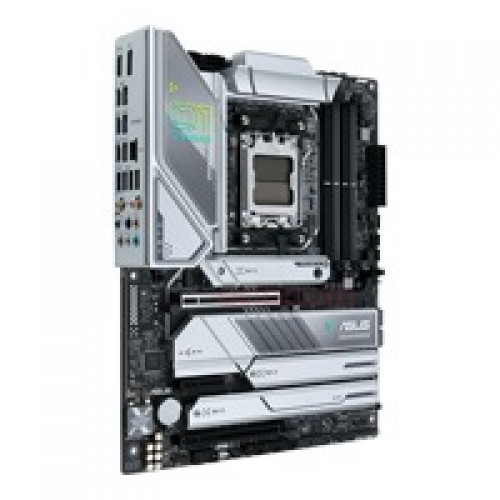

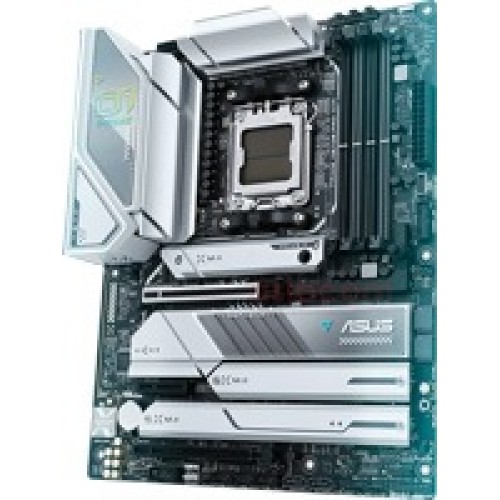

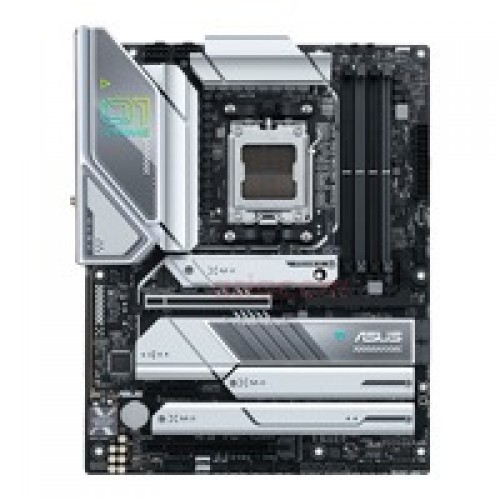

Model: ASUS PRIME X670E-PRO WIFI
Form Factor: ATX
Chipset: AMD X670E
Socket: AM5

Supported CPU:

CPU Compatibility: AMD Ryzen 7000 Series Processors
Socket Type: AM5
Max Cores: Dependent on Ryzen 7000 Series processor specifications

• Memory (RAM):

Type: DDR5
Number of Slots: 4 x DIMM
Maximum Capacity: Up to 192GB
Supported Memory Speed:
Up to 5200 MHz (base)
Up to 8000 MHz (OC) and above, depending on CPU and memory configuration
Dual Channel: Yes
ECC Memory: Support for non-ECC unbuffered memory (ECC mode supported with Ryzen PRO CPUs only)

• Graphics:

Integrated Graphics Output:
1 x HDMI 2.1 port, supporting up to 4K @ 60Hz
1 x DisplayPort 1.4 (from CPU, supports up to 8K @ 60Hz with compatible monitors and cables)
Note: Integrated graphics functionality is only available with CPUs that include an integrated GPU.

• Expansion Slots:

PCIe Slots:
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (operates at x4 mode)
2 x PCIe 4.0 x1 slots
Multi-GPU Support: AMD CrossFireX Technology

• Storage:

M.2 Slots:
4 x M.2 slots with support for both PCIe 5.0 and PCIe 4.0 modes, depending on the slot.
RAID Support: Yes, for NVMe and SATA drives
SATA Ports:
4 x SATA 6Gb/s ports, with support for RAID 0, 1, and 10

• Networking:

Ethernet:
1 x 2.5Gb Ethernet port (Realtek RTL8125BG)
Wireless:
Wi-Fi 6E (supports 802.11ax on 6GHz band, depending on regional availability)
Bluetooth 5.2

• Audio:

Audio Codec: Realtek S1220A
Channels: 7.1-channel HD audio
Features:
DTS
Ultra support for an immersive audio experience
Dedicated audio PCB layers for signal integrity

• USB Ports:

Rear I/O Ports:

USB 3.2 Gen 2x2: 1 x USB Type-C (20Gbps)
USB 3.2 Gen 2: 3 x USB Type-A, 1 x USB Type-C (10Gbps)
USB 3.2 Gen 1: 4 x USB Type-A (5Gbps)
USB 2.0: 2 x USB Type-A

• Internal Headers:

USB 3.2 Gen 1: 1 x 19-pin header (supports 2 ports)
USB 2.0: 2 x headers (supports 4 ports)
10. Additional Features

• Cooling:

VRM and chipset heatsinks with integrated heatpipes
1 x M.2 heatsink and thermal pad
Multiple fan and pump headers for custom cooling configurations

• BIOS:

Flashback: BIOS FlashBack button for easy updates
EZ Flash for in-BIOS updates and settings adjustments
UEFI BIOS with graphical interface

RGB Lighting:

Aura Sync RGB headers for customization
Addressable Gen 2 headers for LED strips and accessories
11. Included Accessories
SATA cables
Wi-Fi antenna
M.2 screws
User manual

• Warranty: 3 years Warranty

Description:

Designed for performance, the PRIME X670E-PRO WIFI motherboard is compatible with AMD Ryzen 7000 Series CPUs and AM5 sockets. It supports up to 192GB of DDR5 RAM, with speeds reaching 8000+ MHz (OC). Equipped with HDMI and DisplayPort outputs, 2.5Gb Ethernet, and Wi-Fi 6E, it’s ideal for advanced setups.
