Key Features:

• AMD AM5 Socket – Supports AMD Ryzen 7000 series processors.
• PCIe 5.0 Support – For faster data transfer and next-gen GPU compatibility.
• DDR5 Memory Support – Up to 6400MHz for superior memory performance.
• WiFi 6E – Latest WiFi 6E technology for faster, more stable wireless connections.
• Dual M.2 and SATA SSD Support – Fast storage options with PCIe 4.0 and 5.0 M.2 slots.
• 5-Way Optimization – AI-driven overclocking for enhanced performance.
• USB 3.2 Gen 2x2 – High-speed USB ports with 20Gbps transfer rates.
• Robust Cooling – Premium cooling solutions with VRM heatsinks and fan headers.
• Aura Sync RGB – Customizable RGB lighting for personalization.
• SupremeFX Audio – High-quality sound with built-in ESS DAC for immersive audio.

Full Specifications

• Chipset and CPU Support:

Chipset: AMD X670E chipset
Socket: AM5 (for AMD Ryzen 7000 Series processors)
CPU Support: Compatible with AMD Ryzen 7000 series processors (Zen 4 architecture), supporting overclocking

• Memory:

Memory Slots: 4 x DDR5 DIMM slots
Maximum Memory Capacity: 128GB (32GB per slot)
Memory Type: DDR5 (4800 MHz and up to 6400 MHz overclocked)
ECC Support: No
Dual Channel Memory Architecture

• Storage:

M.2 Slots:
2 x M.2 slots for NVMe SSDs (supports PCIe 5.0 x4 and PCIe 4.0 x4)
1 x M.2 2230/2280 for Wi-Fi or storage
1 x M.2 2280 for high-performance storage
SATA Ports:
6 x SATA 6Gb/s ports
RAID Support: RAID 0, RAID 1, RAID 10, and RAID 5
NVMe Support: Yes (PCIe 5.0 and PCIe 4.0)

• Expansion Slots:

PCIe x16 Slots:
2 x PCIe 5.0 x16 (supporting up to PCIe 5.0 x16 and PCIe 4.0 x16 depending on configuration)
PCIe x1 Slots:
2 x PCIe 4.0 x1 slots
Slot Configuration:
PCIe 5.0 x16 for GPU (GPU slot supports PCIe 5.0 for maximum bandwidth)
PCIe 4.0 x16 (running at x8 speed)

• Networking:

WiFi:
Wi-Fi 6E (802.11ax): Tri-band (2.4GHz, 5GHz, 6GHz) with Bluetooth 5.2 support
Ethernet:
10Gb Ethernet (10G LAN) with Intel I225-V
Gigabit Ethernet (RJ45 port)

• Audio:

Audio Codec: Realtek ALC4080
Channels: 7.1 surround sound (via HDMI or audio jacks)
Impedance: Supports up to 600Ω headphones for high-quality audio
S/PDIF Out: Optical and coaxial outputs for high-fidelity sound systems

• USB Ports:

Rear I/O:
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
Internal Headers:
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 1 headers (supporting up to 4 USB ports)
2 x USB 2.0 headers (supporting up to 4 USB 2.0 ports)

• Video Outputs:

HDMI: 1 x HDMI 2.1 (supports 4K at 120Hz)
DisplayPort: Not available (requires a discrete GPU for dedicated graphics)

• Cooling and Power Delivery:

Power Connectors:
24-pin ATX power connector
8-pin + 4-pin EPS power connectors for CPU power delivery
VRM:
16+2 DrMOS power stages
Premium capacitors for high-end voltage regulation
Extensive heat sinks and active cooling for VRM

• BIOS:

BIOS Type: UEFI BIOS
Flashback: BIOS Flashback for easy BIOS recovery
Features:
AI Overclocking
Secure Boot
EZ Mode and Advanced Mode

• RGB and Aesthetics:

RGB Features:
Addressable RGB headers (2 x 3-pin)
Aura Sync support for LED lighting customization
Design: Black and silver accents with the ROG (Republic of Gamers) logo

• Form Factor:

Motherboard Form Factor: ATX
Dimensions: 12.0" x 9.6" (30.5 cm x 24.4 cm)

• Additional Features:

PCIe Slot Protection: SafeSlot (reinforced PCIe slots)
AI Networking: ASUS AI Networking suite for intelligent traffic prioritization
USB BIOS Flashback: Allows BIOS recovery without CPU or RAM
Q-LED indicators for debugging
Debug LED for troubleshooting

• Included Accessories:

Wi-Fi Antennas: Dual external Wi-Fi 6E antennas
SATA Cables: 2 x SATA 6Gb/s cables
M.2 Screws: For securing M.2 devices

Description:

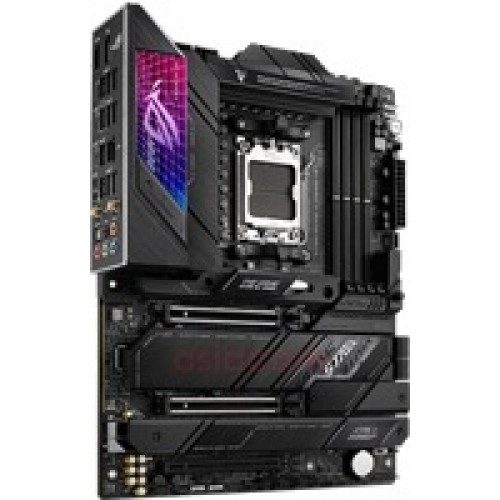

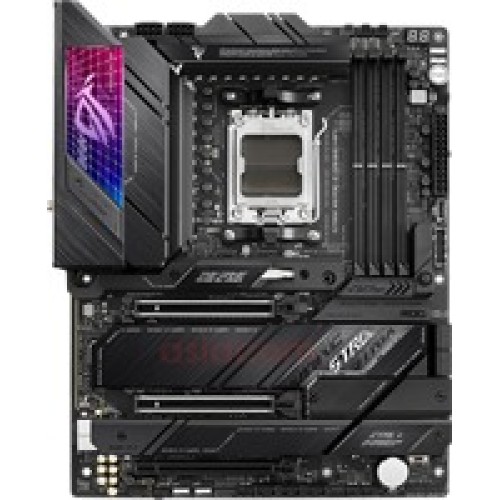

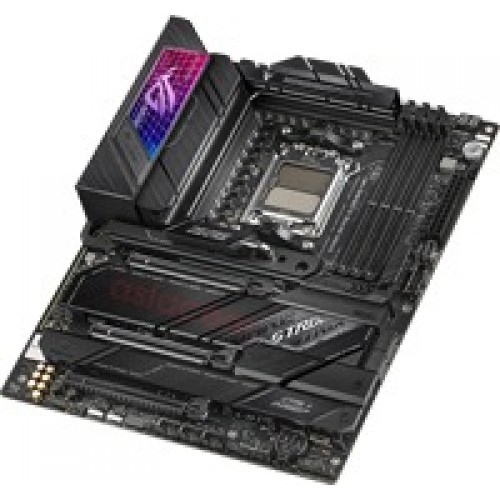

The ASUS ROG Strix X670E-E Gaming WiFi ATX Motherboard is a high-performance motherboard designed for gamers and PC enthusiasts. It supports AMD's Ryzen 7000 series processors and features the latest PCIe 5.0 technology for faster data transfer speeds. With robust power delivery, premium cooling solutions, and a sleek design, it offers top-tier performance for demanding applications. The motherboard also includes built-in WiFi 6E, high-speed Ethernet, and ample connectivity options, ensuring an immersive gaming experience and future-proof capability. Additionally, it boasts customizable RGB lighting for personalized aesthetics.
