Key Features:

• AM5 Socket – Supports AMD Ryzen 7000 series processors for high performance.
• DDR5 Memory Support – Compatible with the latest DDR5 RAM for faster speeds and higher capacities.
• Wi-Fi 6E – Built-in Wi-Fi 6E for fast, stable wireless connectivity.
• PCIe 5.0 – Next-gen PCIe 5.0 slots for faster graphics card and storage device performance.
• Durable TUF Components – Enhanced durability with military-grade components for long-lasting reliability.
• Comprehensive Cooling – Multiple fan headers and heatsinks for optimal thermal management.
• USB 3.2 Gen 2x2 – Fast data transfer with high-speed USB ports for peripherals.
• TUF Gaming Alliance – Compatible with TUF components and accessories for a cohesive gaming build.

Full Specification

• General Specifications:

- Brand: ASUS
- Model: TUF GAMING B650-PLUS WIFI
- Form Factor: ATX
- Socket Type: AM5 (for AMD Ryzen™ 7000 Series Desktop Processors)
- Chipset: AMD B650

• Memory:

- Memory Type: DDR5
- Memory Slots: 4 x DIMM
- Memory Capacity: Up to 128GB
- Supported Memory Speed: Up to DDR5 6400+ (OC)
- Dual Channel Memory Architecture
- ECC & Non-ECC support

• Graphics:

- Integrated Graphics: Depends on CPU (for CPUs with integrated GPU only)
- Display Output:
  - 1 x HDMI 2.1
  - 1 x DisplayPort 1.4

• Expansion Slots:

- PCIe Slots:
  - 1 x PCIe 4.0 x16 slot (supports x16 mode)
  - 2 x PCIe 3.0 x1 slots
  - 1 x PCIe 4.0 x16 slot (supports x4 mode)

• Storage:

- M.2 Slots:
  - 1 x M.2 PCIe 5.0 x4 (with support for 22110 storage devices)
  - 1 x M.2 PCIe 4.0 x4
- SATA Ports: 4 x SATA 6Gb/s
- RAID Support: RAID 0, 1, 10 for SATA storage devices

• Networking:

- Wi-Fi: Wi-Fi 6 (802.11ax) and Bluetooth 5.2
- LAN: Realtek 2.5Gb Ethernet

• Audio:

- Audio Codec: Realtek ALC S1200A
- Audio Channels: 7.1 Surround Sound

• Rear I/O Ports:

- USB Ports:
  - 1 x USB 3.2 Gen 2x2 Type-C
  - 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C)
  - 4 x USB 3.2 Gen 1 Type-A
  - 2 x USB 2.0
- Video Ports: 1 x HDMI 2.1, 1 x DisplayPort 1.4
- LAN Port: 1 x Realtek 2.5Gb Ethernet
- Audio Ports: 5 x Audio Jacks + 1 x Optical S/PDIF Out

• Internal I/O Connectors:

- USB Headers:
  - 1 x USB 3.2 Gen 1 header
  - 2 x USB 2.0 headers
- RGB Headers: 3 x Addressable Gen 2 RGB headers, 1 x Aura RGB header
- Fan Headers: 5 x Chassis fan headers
- M.2 Heatsinks: Included for both M.2 slots

• Power Connectors:

- Main Power Connector: 24-pin ATX
- CPU Power Connector: 1 x 8-pin + 1 x 4-pin

• BIOS:

- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

• Additional Features:

- Enhanced VRM Heatsinks and Thermal Design
- AI Overclocking and Cooling Technology
- TUF Protection: Military-grade components, including TUF capacitors, Digi+ VRM, and ESD protection.
- Fan Xpert 4 Software

Description:

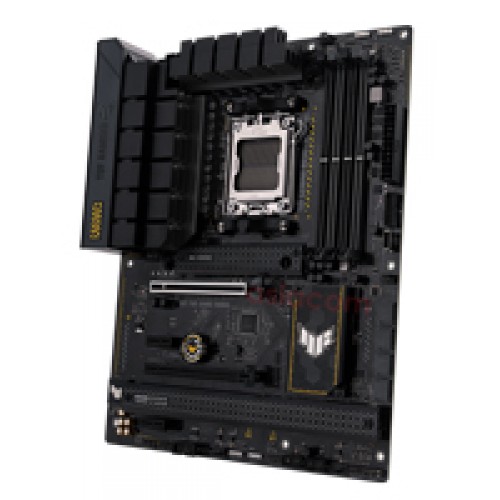

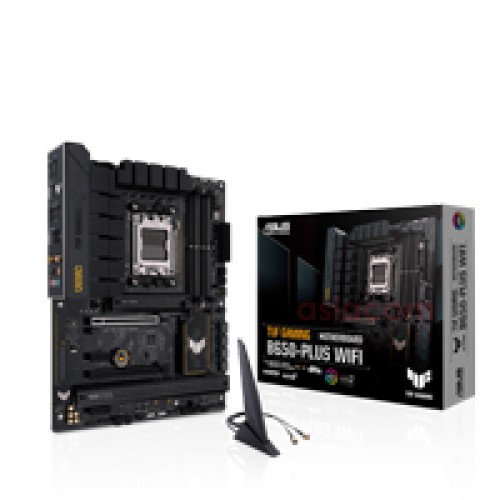

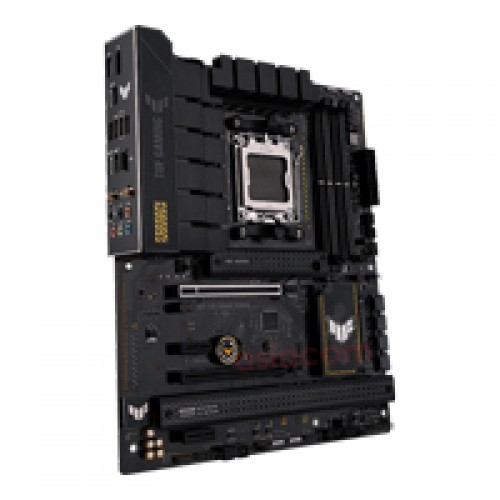

The Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard is a robust motherboard designed for gamers and PC builders seeking durability and performance. Built on the AMD AM5 socket, it supports the latest Ryzen processors, providing high-speed connectivity with PCIe 5.0, DDR5 memory support, and onboard Wi-Fi 6. The board includes multiple heatsinks and TUF components for enhanced stability, while the ATX form factor offers extensive expansion options. With features like Aura Sync RGB lighting and reinforced PCIe slots, it's a solid choice for building a reliable, high-performance gaming setup.
