Key Features:

• AMD AM5 Socket: Supports the latest AMD Ryzen 7000 series processors.
• DDR5 Memory Support: Compatible with high-performance DDR5 RAM for faster data transfer speeds.
• Wi-Fi 6 (802.11ax): Built-in Wi-Fi 6 for faster, more reliable wireless connectivity.
• PCIe 5.0 Ready: Offers PCIe 5.0 slots for next-gen graphics cards and storage devices.
• TUF Components: Military-grade TUF capacitors, chokes, and other components for enhanced durability.
• Robust Cooling: Advanced cooling features, including heatsinks and fan headers, for efficient heat dissipation.
• Dual M.2 & SATA Ports: Multiple M.2 slots and SATA ports for flexible storage options.
• USB 3.2 Gen 2x2: Fast USB connectivity with 20Gbps transfer speeds.
• Aura Sync RGB: Customizable RGB lighting support for a personalized gaming setup.

Full Specification:

• General Specifications:

- Brand: ASUS
- Model: TUF GAMING B650M-PLUS WIFI
- Form Factor: Micro ATX (mATX)
- Chipset: AMD B650
- Socket: AM5
- Compatible Processors: AMD Ryzen 7000 series (Zen 4 architecture)

• Memory:

- Memory Type: DDR5
- Memory Slots: 4 x DIMM
- Max Memory: Up to 128 GB
- Memory Speed:
  - Supports DDR5 6400+ (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 (OC) / 5400 / 5200 / 5000 / 4800 MHz (non-ECC, un-buffered)
  - Note: Memory speed support depends on CPU capabilities and memory module configurations.
- ECC Support: No (non-ECC un-buffered memory only)
- Dual Channel Memory Architecture

• Expansion Slots:

- PCIe x16:
  - 1 x PCIe 4.0 x16 slot (supports x16 mode, for dedicated GPU)
  - 1 x PCIe 3.0 x16 slot (supports x4 mode)
- PCIe x1:
  - 1 x PCIe 3.0 x1 slot

• Storage:

- M.2 Slots:
  - 2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)
  - Support for NVMe SSDs
  - Supports M.2 heatsinks for optimal thermal management
- SATA Ports:
  - 4 x SATA 6Gb/s ports
- RAID Support:
  - Supports RAID 0, 1, and 10 for both NVMe and SATA storage

• Graphics:

- Integrated Graphics Support:
  - Dependent on the processor (requires AMD processors with integrated graphics, such as Ryzen 7000G series)
- Display Outputs:
  - 1 x HDMI 2.1
  - 1 x DisplayPort 1.4

• Audio:

- Audio Chipset: Realtek 7.1 Channel HD Audio Codec (Realtek ALC897)
- Audio Features:
  - TUF Gaming Audio Cover
  - Audio Shielding
  - Premium Japanese Audio Capacitors
  - Dedicated Audio PCB Layers

• Networking:

- Ethernet:
  - Realtek 2.5 Gb Ethernet
- Wireless:
  - Wi-Fi 6 (802.11ax)
  - Bluetooth 5.2

• Rear I/O Ports:

- USB Ports:
  - 1 x USB 3.2 Gen 2x2 Type-C
  - 2 x USB 3.2 Gen 2 Type-A
  - 2 x USB 3.2 Gen 1 Type-A
  - 4 x USB 2.0 Type-A
- Video Ports:
  - 1 x HDMI 2.1
  - 1 x DisplayPort 1.4
- Network:
  - 1 x RJ-45 (2.5 Gb Ethernet)
- Audio Ports:
  - 3 x Audio jacks (Line-in, Line-out, Mic-in)
- Other:
  - 1 x BIOS FlashBack button
  - 1 x Q-LED Diagnostic display

• Internal I/O Connectors:

- USB:
  - 1 x USB 3.2 Gen 1 Header (supports 2 x USB 3.2 Gen 1 ports)
  - 1 x USB 3.2 Gen 2 Type-C Header
  - 2 x USB 2.0 Headers (support 4 x USB 2.0 ports)
- Fan Headers:
  - 4 x 4-pin fan headers
- RGB Headers:
  - 1 x Aura Addressable Gen 2 RGB header
  - 1 x Aura RGB header
- Front Panel:
  - Standard front panel connectors
  - Front panel audio connector

• Power Connectors:

- 24-pin ATX main power connector
- 8-pin + 4-pin CPU power connectors

BIOS:
- BIOS Type: 256 Mb Flash ROM, UEFI AMI BIOS
- Features:
  - ASUS UEFI BIOS with EZ Flash 3
  - BIOS FlashBack feature

• Other Features:

- Cooling Solution:
  - Enlarged VRM heatsinks for better heat dissipation
  - Thermal pads and integrated cooling for M.2 slots
- TUF Gaming Alliance:
  - Enhanced durability and compatibility with TUF Gaming components

• Operating System Compatibility:

- Windows 11 (64-bit)
- Windows 10 (64-bit)

Description:

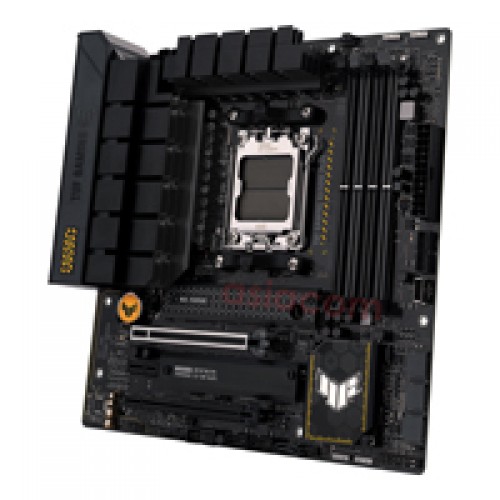

The ASUS TUF GAMING B650M-PLUS WIFI is a robust mATX motherboard designed for AMD's latest AM5 socket, compatible with Ryzen 7000 series processors and optimized for DDR5 memory. Built with durability and performance in mind, it features enhanced power delivery, efficient cooling solutions, and comprehensive connectivity, including Wi-Fi 6, 2.5G Ethernet, USB 3.2 Gen 2x2, and PCIe 5.0 support. The motherboard also includes ASUS TUF components for long-lasting durability and is ideal for gamers and PC enthusiasts looking for stability and power in a compact form factor.
