Key Features:

• AMD AM5 Socket: Compatible with the latest AMD Ryzen 7000 series processors.
• PCIe 5.0 Support: Offers faster data transfer rates for GPUs and storage devices.
• Wi-Fi 6E: Provides fast and stable wireless connectivity with next-gen 6 GHz support.
• DDR5 Memory: Supports high-performance DDR5 RAM for improved system speed and efficiency.
• Robust Power Design: 12+2 power stages for stable and reliable power delivery to the CPU.
• TUF Military-Grade Components: Built with durable components for long-lasting performance.
• Dual M.2 Slots: Supports high-speed NVMe SSDs for faster storage options.
• USB 3.2 Gen 2x2: High-speed data transfer with up to 20Gbps USB ports.
• Customizable RGB Lighting: Integrated RGB headers for personalized lighting setups.
• Enhanced Cooling: Multiple fan headers and an advanced thermal solution for optimal cooling.

Full Specifications

• General Information:

Form Factor: ATX
Socket: AMD Socket AM5
Chipset: AMD X670E
Target Audience: Gaming / Enthusiasts

• Processor Support:

CPU Support: AMD Ryzen™ 7000 Series Desktop Processors (AM5)
Memory Support: DDR5
Maximum Capacity: Up to 128GB (4 x 32GB)
Supported Frequencies: 6400+(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400, 5200, 4800MHz

• Expansion Slots:

PCIe-
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Storage-
M.2 Slots:
1 x PCIe 5.0 x4 M.2 slot
3 x PCIe 4.0 x4 M.2 slots
SATA Ports: 4 x SATA 6Gb/s ports

• Networking:

Ethernet: 2.5G Ethernet (Realtek RTL8125)
Wi-Fi: Wi-Fi 6E (802.11ax)
Bluetooth: Bluetooth 5.2

• Audio:

Audio Codec: Realtek 7.1 Channel High Definition Audio CODEC S1200A
Features: Supports DTS® Sound Unbound and Sonic Studio III

• Rear I/O Ports:

USB Ports:
1 x USB 3.2 Gen 2x2 Type-C® port
2 x USB 3.2 Gen 2 Type-A ports
4 x USB 3.2 Gen 1 Type-A ports
4 x USB 2.0 ports

Video Outputs:
1 x HDMI 2.1
1 x DisplayPort 1.4
Audio Jacks: 5 x Audio Jacks + 1 x Optical S/PDIF Out
Networking Port: 1 x 2.5G LAN Port

• Internal Headers:

USB Headers:
1 x USB 3.2 Gen 2x2 Header (supports Type-C®)
1 x USB 3.2 Gen 1 Header (supports up to 2 ports)
2 x USB 2.0 Headers (support up to 4 ports)

• Fan Headers:

Multiple fan headers for optimal cooling, including CPU, chassis, and AIO pump headers
RGB Headers:
2 x Aura RGB headers
1 x Addressable Gen 2 RGB header

• Power Connectors:

Main Power Connector: 24-pin ATX
CPU Power Connector: 1 x 8-pin + 1 x 4-pin

• Additional Features:

ASUS Exclusive Technologies:

TUF Protection: SafeSlot, ESD Guards, Overvoltage Protection, and Stainless Steel Back I/O
Thermal Solution: Enlarged VRM heatsinks, PCH heatsink, and hybrid fan headers with Fan Xpert 4
DIY Friendly: BIOS Flashback™ button for easy BIOS updates

• BIOS:

UEFI AMI BIOS with EZ Flash 3, MemTest86, and extensive tuning features

Description:

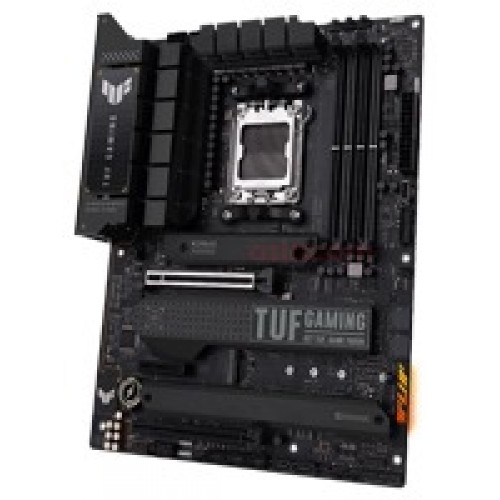

The ASUS TUF Gaming X670E-PLUS is a high-performance ATX motherboard designed for AMD Ryzen 7000 series processors. Built on the X670E chipset, it supports PCIe 5.0, DDR5 memory, and up to four M.2 SSDs for ultra-fast data access and gaming performance. The motherboard boasts a rugged, durable design with military-grade components, reinforced PCIe slots, and comprehensive cooling solutions, including VRM heatsinks and a hybrid fan header for optimal thermal management. With robust connectivity options like USB 3.2 Gen 2x2, WiFi 6E, and 2.5Gb Ethernet, it provides seamless, high-speed networking. The ASUS TUF Gaming X670E-PLUS is ideal for gamers and PC enthusiasts seeking reliability and top-tier gaming performance.
