Full Specification

• General Specifications:

Model: ASUS TUF GAMING X670E-PLUS WIFI
Form Factor: ATX (30.5 cm x 24.4 cm)
Chipset: AMD X670E
Socket: AM5 (for AMD Ryzen 7000 Series CPUs)

• CPU Support:

Supports AMD Ryzen 7000 Series processors with AM5 socket
Built on the AM5 platform, providing support for DDR5 and PCIe 5.0 technology

• Memory:

Memory Type: DDR5
Memory Slots: 4 x DIMM slots
Maximum Memory: Up to 128 GB
Memory Speed: Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5200 / 4800 MHz
Dual Channel support for enhanced performance

• Expansion Slots:

PCIe 5.0 x16 slot: 1 slot
PCIe 4.0 x16 slot: 1 slot
PCIe 3.0 x1 slot: 1 slot
Multi-GPU Support: Supports AMD CrossFireX

• Storage:

M.2 Slots:
1 x PCIe 5.0 M.2 slot (2280/22110)
2 x PCIe 4.0 M.2 slots (2280/22110)
SATA Ports: 4 x SATA 6Gb/s ports
RAID Support: RAID 0, 1, and 10 (both M.2 and SATA)

• Networking:

LAN: Realtek 2.5Gb Ethernet
Wi-Fi: Wi-Fi 6E (802.11ax)
Bluetooth: Bluetooth 5.2

• Audio:

Audio Codec: Realtek 7.1 Channel High Definition Audio (S1220A)
Audio Features:
DTS Audio support for immersive sound
TUF Gaming audio shielding and high-quality audio capacitors

• USB Ports:

Rear USB Ports:
1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 2 (Type-A)
2 x USB 3.2 Gen 1 (Type-A)
4 x USB 2.0 (Type-A)

• Internal Headers:

USB 3.2 Gen 1 header for front panel (up to 5Gbps)
USB 2.0 headers for additional front panel USB ports

• Cooling & Overclocking:

VRM: 14+2 Power Stage design, optimized for stable power delivery
Cooling Features:
Extended VRM heatsinks with a larger surface area for better heat dissipation

• Dedicated chipset heatsinks:

Multiple fan headers for optimized cooling
AIO pump and water cooling headers

• RGB and Aesthetics:

RGB Lighting: Yes, with ASUS Aura Sync support for full RGB customization

RGB Headers:

1 x Aura RGB header
1 x Addressable Gen 2 RGB header

• BIOS & Management:

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
EZ Flash 3: For easy BIOS updates
AI Overclocking: AI overclocking support
TUF Gaming Alliance Certification: For improved compatibility with TUF-certified components

• Miscellaneous:

Operating System: Windows 10/11 compatibility

• Accessories Included:

TUF Certification card

• M.2 Q-Latch for easy M.2 installation:

Wi-Fi antenna
SATA cables

Warranty: 3 years Warranty

Description:

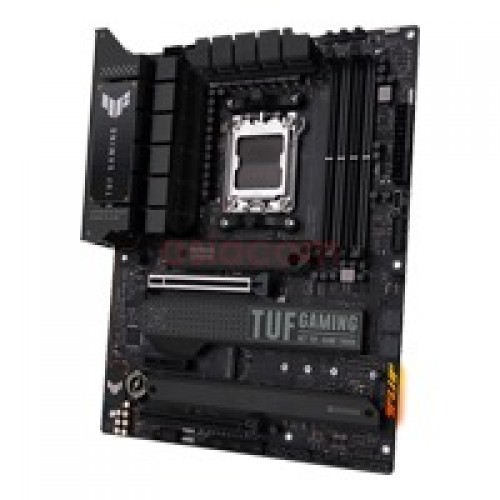

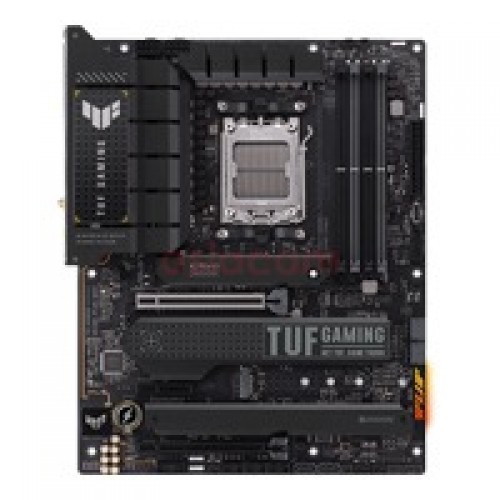

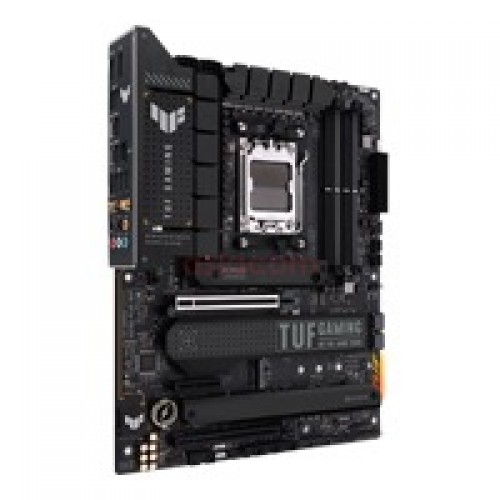

The ASUS TUF GAMING X670E-PLUS WIFI is a robust ATX motherboard designed for high-performance gaming, compatible with AMD Ryzen 7000 series processors. Built with the AMD X670E chipset, it supports PCIe 5.0, DDR5 memory, and multiple M.2 slots for fast storage options. It features WiFi 6E for advanced wireless connectivity, USB 4.0 for high-speed data transfers, and Realtek S1220A audio for immersive sound. With a durable build, enhanced cooling solutions, and Aura Sync RGB lighting, this motherboard is ideal for gamers seeking reliable performance and customization.
