Key Features:

Full Specification

• General Specifications:

Model: ASUS TUF GAMING Z690-PLUS WIFI D4
Form Factor: ATX
Chipset: Intel Z690
Socket: LGA1700
Memory Type: DDR4

• CPU Support:

Supported Processors: Intel 12th and 13th Generation Core, Pentium Gold, and Celeron processors
Socket Type: LGA1700

• Memory:

Memory Type: DDR4
Supported Memory Speeds: 5333 (OC), 5133 (OC), 5066 (OC), 5000 (OC), 4800 (OC), 4600 (OC), 4500 (OC), 4400 (OC), 4266 (OC), 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz
Memory Capacity: Up to 128 GB
Slots: 4 x DIMM

• Expansion Slots:

PCIe 5.0 x16: 1 slot (for the graphics card, with Steel Armor for durability)
PCIe 3.0 x16: 1 slot (x4 mode)
PCIe 3.0 x1: 2 slots

• Storage:

M.2 Slots: 4 x M.2 slots (3 support PCIe 4.0 x4, 1 supports PCIe 3.0 x4)
M.2 Key M: 2242/2260/2280 for PCIe 4.0/3.0 and SATA drives
SATA Ports: 4 x SATA 6Gb/s

• Networking:

LAN: Intel I225-V 2.5Gb Ethernet
Wireless: Wi-Fi 6 (802.11ax)
Bluetooth: Bluetooth 5.2

Audio:

Audio Codec: Realtek ALC1200A
Channels: 7.1 Surround Sound HD Audio

USB Ports:

Rear I/O
USB 3.2 Gen 2x2: 1 x USB Type-C
USB 3.2 Gen 2: 3 x Type-A
USB 3.2 Gen 1: 2 x Type-A
USB 2.0: 2 x Type-A

Internal Headers:

USB 3.2 Gen 1: 1 x Type-C, 1 x Type-A
USB 2.0: 2 headers supporting 4 USB 2.0 ports
Display Outputs (for CPUs with integrated graphics)
HDMI: 1 x HDMI 2.1
DisplayPort: 1 x DisplayPort 1.4

• Cooling and Power:

Power Phases: 14+1 DrMOS power stages for stable overclocking
VRM Heatsinks: Comprehensive VRM heatsink design
Thermal Pads and PCH Heatsink: For enhanced thermal management
Fan Headers: Multiple 4-pin PWM fan headers, including dedicated headers for AIO cooling

• Additional Features:

RGB Lighting: Aura Sync RGB with addressable RGB headers
AI Overclocking: Automatic tuning for optimized performance
AI Cooling: Adaptive cooling for system stability
TUF Components: Military-grade TUF components for durability

• Physical Dimensions:

Form Factor: ATX (30.5 cm x 24.4 cm)

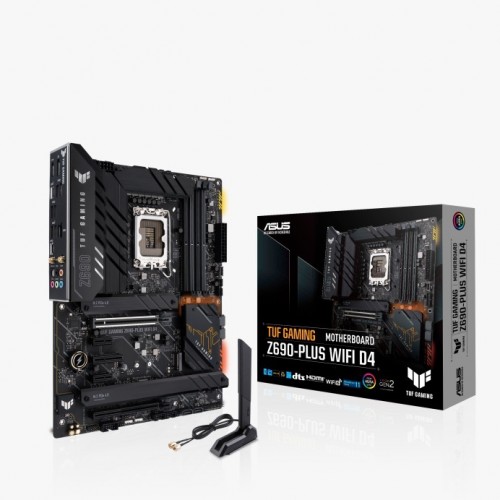

• Box Contents:

Accessories: TUF Gaming sticker, TUF Certification Card, User manual, Wi-Fi antennas, M.2 SSD screw package, SATA cables

Description:

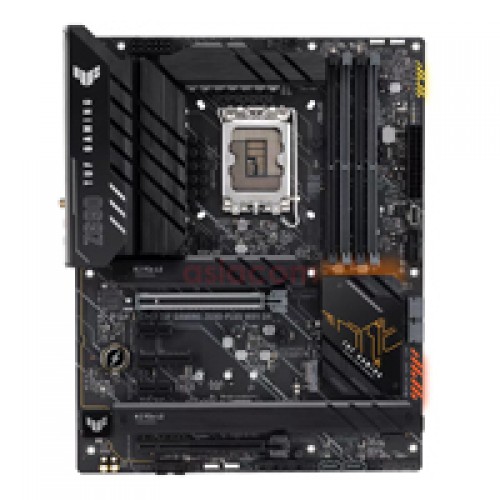

The ASUS TUF GAMING Z690-PLUS WIFI D4 is a high-performance ATX motherboard designed for Intel's 12th and 13th generation processors with the LGA 1700 socket, optimized for gaming and demanding applications. Built on the Intel Z690 chipset, it supports DDR4 memory and features PCIe 5.0 slots for ultra-fast graphics cards and M.2 slots with heat sinks for NVMe SSDs. The board includes Wi-Fi 6 for fast and stable wireless connectivity, a robust power solution with military-grade components, and a durable, stylish design. With its extensive cooling options and customizable RGB lighting, the Z690-PLUS WIFI D4 is ideal for building a reliable, high-performance gaming PC.
