Key Features:

Chipset: Intel Z790, supporting 13th and 12th Gen Intel Core processors.
Memory Support: Up to 128GB DDR4 RAM, with speeds up to 5333 MHz (OC).
Cooling Optimization: Enhanced VRM and PCH heatsinks, hybrid fan headers, and Fan Xpert 4 software for efficient cooling.
Storage Options: 4x M.2 slots (PCIe 4.0) and 4x SATA 6Gb/s ports.
Networking: Intel 2.5Gb Ethernet and support for ASUS WiFi 6E.
Audio: Realtek S1200A codec with DTS Audio Processing for immersive sound.
Expansion: PCIe 5.0 x16 slot for GPUs and PCIe 4.0 slots for additional devices.
Durability: Military-grade components with TUF protection for enhanced reliability.
Connectivity: USB 3.2 Gen 2x2 (Type-C), multiple USB 3.2/2.0 ports, and HDMI/DisplayPort for multi-display setups.
Aura Sync RGB: Customizable RGB lighting with compatibility for Aura Sync peripherals.

Full Specification:

• Chipset and CPU Compatibility:

Chipset: Intel Z790
CPU Support: Compatible with Intel 14th, 13th, and 12th Gen Core processors.
Memory: Supports DDR4 memory up to 5333 MHz (OC), with 4 DIMM slots for a maximum capacity of 128 GB.

• Expansion Slots:

1 x PCIe 5.0 x16 (primary GPU slot).
1 x PCIe 4.0 x16 (x4 mode).
1 x PCIe 4.0 x4.
2 x PCIe 3.0 x1.

• Storage:

4 x M.2 slots:
Three support PCIe 4.0 x4.
One supports PCIe 4.0 x4 & SATA modes.
4 x SATA 6 Gb/s ports.
RAID support for PCIe and SATA configurations.

• Networking:

Ethernet: Intel 2.5 Gb Ethernet with TUF LANGuard for enhanced reliability.
USB Connectivity
Rear I/O:
1 x USB 3.2 Gen 2x2 (Type-C).
3 x USB 3.2 Gen 2 (Type-A and Type-C).
4 x USB 3.2 Gen 1 (Type-A).
Front Panel:
1 x USB 3.2 Gen 2 connector (Type-C).
1 x USB 3.2 Gen 1 header (supports 2 ports).
2 x USB 2.0 headers (supports 4 ports).

• Audio:

Codec: Realtek S1220A 7.1 surround sound with premium capacitors.
Features optical S/PDIF output and impedance sensing for headphones.

• Cooling and Power:

Cooling Headers:
Multiple fan headers for CPU, chassis, and AIO cooling.
Enlarged VRM and M.2 heatsinks for better thermal performance.
Power Delivery: 16+1 DrMOS power stages with ProCool connectors for stable overclocking.

• Miscellaneous Features:

RGB Lighting: ASUS Aura Sync support with Gen 2 addressable RGB headers.
EZ DIY Features: PCIe Q-Release, M.2 Q-Latch for easy installation.
BIOS: Includes user-friendly ASUS BIOS with EZ mode and advanced settings.

• Software:

Bundled with Armoury Crate software for system control, RGB lighting management, and updates.

Description:

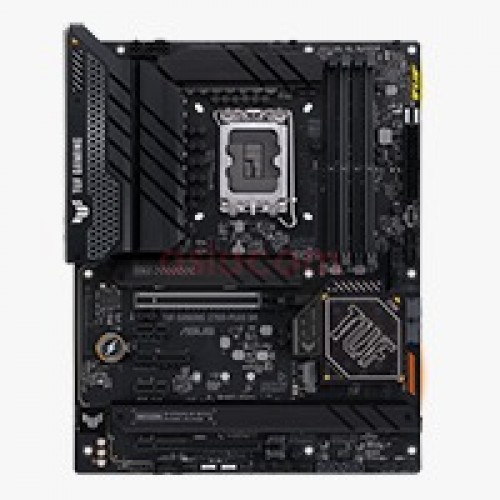

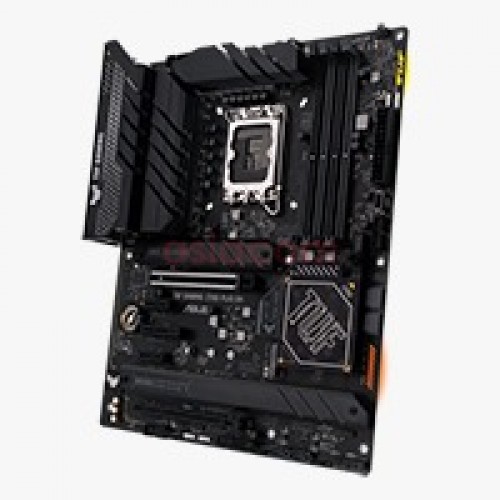

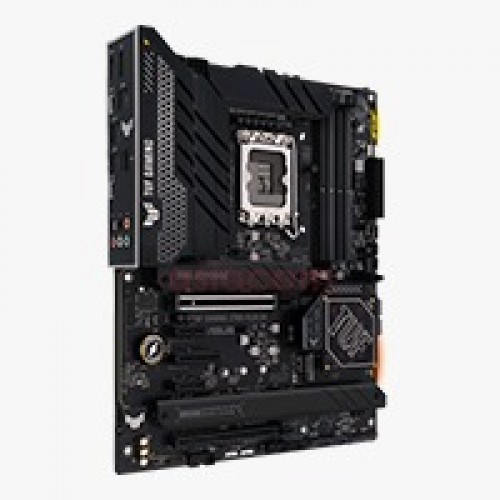

The ASUS TUF GAMING Z790-PLUS D4 is a high-performance ATX motherboard designed for gamers and enthusiasts. Built on the Intel Z790 chipset, it supports 12th and 13th Gen Intel Core processors and features DDR4 memory support for cost-effective performance. This motherboard offers robust power delivery, comprehensive cooling solutions, and military-grade components to ensure durability and stability under demanding conditions.

It boasts PCIe 5.0 support, Thunderbolt 4 compatibility, and multiple M.2 slots for fast storage options. With customizable RGB lighting and advanced connectivity, including Wi-Fi 6 and 2.5Gb Ethernet, it’s a reliable and versatile choice for gaming setups.
