key Features:

PCIe 5.0 Storage Support: Offers next-gen PCIe 5.0
Three M.2 Slots: Provides versatile storage options
12+2 DrMOS Power Phases: Ensures stable power delivery
DDR5 Support: Compatible with the latest DDR5 memory

Full Specifications

• Processor Support:

Socket Type: AM5
CPU Support: Supports AMD Ryzen™ 7000 series processors (Zen 4 architecture)
Chipset:
Chipset: AMD X670 chipset
PCIe Support: PCIe 5.0

• Memory:

Memory Slots: 4 x DDR5 DIMM slots
Memory Type: DDR5
Maximum Memory: Up to 128GB (varies based on memory speed and motherboard limits)
Memory Speed: Support for DDR5 memory speeds of up to 6400 MHz (and higher, depending on overclocking)
Dual-Channel Memory Architecture

• Expansion Slots:

PCIe x16 Slot: 1 x PCIe 5.0 x16 slot (For graphics cards or other expansion cards)
PCIe x16 Slot (Additional): 1 x PCIe 4.0 x16 slot (operates at x4 bandwidth for expansion cards)
PCIe x1 Slot: 1 x PCIe 4.0 x1 slot
PCIe 5.0 Storage Support: Full support for PCIe 5.0 storage devices (e.g., M.2 drives)

• Storage:

M.2 Slots: 3 x M.2 slots
1 x M.2 PCIe 5.0 x4 Slot (For NVMe SSD)
2 x M.2 PCIe 4.0 x4 Slots
SATA Ports: 4 x SATA 6Gb/s ports
RAID Support: RAID 0, RAID 1, RAID 10, and RAID 5 supported for SATA devices

• Networking:

Ethernet: 2.5Gb Ethernet port
WiFi: WiFi 6 (802.11ax) for faster wireless connectivity
Bluetooth: Bluetooth 5.2

• Audio:

Audio Codec: Realtek ALC897 8-channel high-definition audio
Audio Features: Supports high-fidelity sound output for gaming and multimedia usage

• Video Output:

Graphics Outputs:
1 x HDMI® 2.1
1 x DisplayPort 1.4

• USB Ports:

Rear I/O Ports:
1 x USB 3.2 Gen 2x2 Type-C® port (20Gbps)
2 x USB 3.2 Gen 2 Type-A (10Gbps)
4 x USB 3.2 Gen 1 Type-A (5Gbps)
2 x USB 2.0 Type-A
1 x USB Flashback™ port

• Front Panel I/O:

1 x USB 3.2 Gen 1 Type-C® (5Gbps)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 ports (varies by case)

• BIOS and Firmware:

BIOS: ASUS UEFI BIOS with user-friendly interface
BIOS FlashBack™: Allows easy BIOS recovery or update without needing a CPU or memory
EZ Mode: Simplified BIOS interface for basic setup, with advanced options available for power users

• Power and VRM:

DrMOS: 12+2 DrMOS power stages for stable power delivery
Power Connectors: 24-pin ATX power connector and 8-pin + 4-pin CPU power connectors
Voltage Regulation: Supports advanced power delivery for overclocking stability

• Lighting and Aesthetics:

Aura Sync RGB Lighting: Supports ASUS Aura Sync for customizable RGB lighting effects with compatible devices (headsets, keyboards, and other peripherals)

• Form Factor:

Motherboard Form Factor: ATX
Dimensions: 12.0 x 9.6 inches (30.5 cm x 24.4 cm)

• Other Features:

PCIe Slot Armor: Reinforced PCIe slots to support heavy GPUs
Q-Code LED: Diagnostic LEDs for error codes during boot-up
EZ Debug LEDs: Helps with troubleshooting by displaying error codes during startup
Thermal Solution: Built-in heatsinks on power delivery areas, including M.2 storage, to ensure efficient heat dissipation
Compatibility: Supports a wide range of accessories, including ASUS PCIe 5.0 storage cards, advanced cooling solutions, and other expansion cards

• Warranty & Support:

Manufacturer’s Warranty: 3 years Warranty

Description:

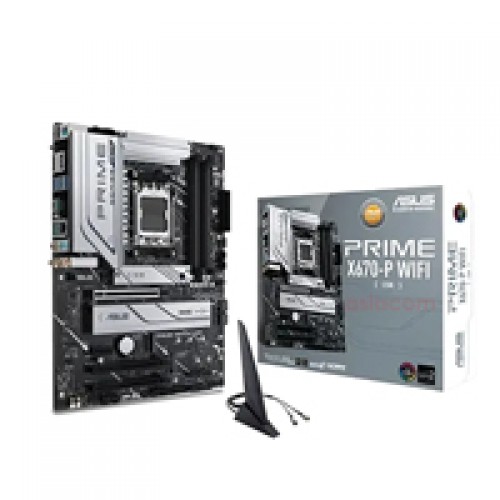

The AMD X670-P WIFI (Ryzen AM5) ATX motherboard offers exceptional performance with PCIe 5.0 storage support, three M.2 slots, and 12+2 DrMOS power phases. It supports DDR5 memory and features HDMI®, DisplayPort, and 2.5Gb Ethernet for seamless connectivity. Equipped with WiFi 6, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, and USB4® support, it ensures fast data transfer speeds. The motherboard also includes SATA 6 Gbps, BIOS FlashBack™, and Aura Sync RGB lighting for an enhanced user experience and customizable aesthetics.
