Key Features:

• Intel Z690 Chipset – Supports 12th Gen Intel Core processors for high performance.
• DDR4 Memory Support – Up to 5333MHz (OC) for fast and reliable memory performance.
• PCIe 5.0 Slot – Future-proof with faster data transfer speeds for next-gen graphics cards.
• TUF Components – Military-grade capacitors and durable design for enhanced longevity and reliability.
• Wi-Fi 6 – Fast wireless connectivity for smooth online gaming and streaming.
• USB 3.2 Gen 2x2 Type-C – High-speed data transfer and quick device charging.
• Comprehensive Cooling – Multiple fan headers and M.2 heatsinks to ensure optimal temperature management.
• Aura Sync RGB – Customizable lighting effects for a personalized gaming setup.
• Reinforced PCIe Slot – Steel braces for added durability and support for heavy GPUs.
• Thunderbolt 4 Support – Fast data transfer and video output via a single cable.

Full Specification

• General Information:

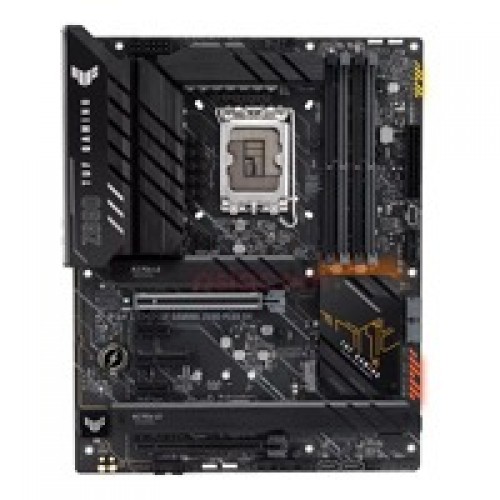

Model: ASUS TUF GAMING Z690-PLUS D4
Form Factor: ATX
Chipset: Intel Z690
Socket: LGA 1700
Compatible CPUs: 12th Gen and 13th Gen Intel Core, Pentium Gold, and Celeron Processors

• Memory:

Memory Slots: 4 x DIMM slots
Type: DDR4
Max Capacity: Up to 128GB
Speed Support: DDR4 5333 MHz (OC), 5000 MHz (OC), 4800 MHz (OC), 4600 MHz (OC), 4400 MHz (OC), 4266 MHz (OC), 4000 MHz (OC), 3866 MHz (OC), 3733 MHz (OC), 3600 MHz (OC), 3466 MHz (OC), 3400 MHz (OC), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Dual Channel Memory Architecture

• Storage:

SATA Ports: 4 x SATA 6Gb/s ports
M.2 Slots:
1 x M.2 slot (Key M), supports 2242/2260/2280/22110 storage devices (PCIe 4.0 x4 mode)
2 x M.2 slots (Key M), support 2242/2260/2280 storage devices (PCIe 3.0 x4 & SATA modes)
RAID Support: RAID 0, 1, 5, 10 for both SATA and PCIe storage devices

• Expansion Slots:

PCIe Slots:
1 x PCIe 5.0 x16 slot (for graphics cards)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

• Graphics Support:

Integrated Graphics Output:
1 x HDMI 2.1
1 x DisplayPort 1.4
Resolution Support: Supports up to 4K@60Hz with HDMI 2.1; 4K@60Hz with DisplayPort 1.4

• Audio:

Audio Codec: Realtek 7.1 Channel Audio CODEC, supports High Definition Audio
Audio Ports:
Rear Optical S/PDIF out port
Front panel audio header

• Networking:

LAN: Intel I225-V 2.5Gb Ethernet
WiFi / Bluetooth: Optional with WiFi module (WiFi 6 support with Bluetooth 5.2 when equipped)

• USB Ports:

Rear USB Ports:
1 x USB 3.2 Gen 2x2 Type-C
1 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
Internal USB Headers:
1 x USB 3.2 Gen 1 header supports up to 2 USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-C header
2 x USB 2.0 headers support up to 4 USB 2.0 ports

• Cooling and Fan Support:

Fan Headers:
1 x 4-pin CPU fan header
1 x 4-pin AIO pump header
4 x 4-pin chassis fan headers
Other: Fan Xpert 4 utility

• Additional Features:

TUF Gaming Alliance compatibility
DIGI+ Power Control: Enhances performance with precise power management
AI Overclocking & Cooling
Military-grade TUF components for enhanced durability
DIY Friendly: SafeSlot and ESD Guards

• Physical Specifications:

Dimensions: 305 mm x 244 mm

• Power Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin + 1 x 4-pin CPU power connector
RGB Headers:
1 x Addressable Gen 2 RGB header
2 x Aura RGB headers (supports ASUS Aura Sync)

Description:

The ASUS TUF GAMING Z690-PLUS D4 motherboard is designed for gamers and power users seeking durability and high performance. Compatible with Intel’s 12th and 13th Gen processors, it features the Intel Z690 chipset and supports DDR4 memory for smooth multitasking. It offers PCIe 5.0 for next-gen graphics, multiple M.2 slots for high-speed SSD storage, and Wi-Fi 6 connectivity. Built with military-grade components, it has robust power delivery, cooling solutions, and enhanced durability. RGB lighting and ASUS Aura Sync compatibility make it a solid, customizable choice for gaming builds.
